1. The gridded pipeline

anyFit follows a load → process → visualize paradigm. This article follows the gridded branch of that pipeline end to end on the bundled E-OBS daily rainfall file, and closes with an extreme-value analysis. Throughout, the data reside in a single sxts object (see vignette("sxts-class")).

f <- system.file("extdata", "rr_ens_mean_0.25deg_reg_2011-2022_v27.0e.nc",
                 package = "anyFit")
uk_name <- "U.K. of Great Britain and Northern Ireland"

2. Load: reading and clipping NetCDF

nc2xts() reads a NetCDF variable directly and returns an sxts. It can clip the data while reading, reading only the requested spatial hyperslab from disk, via any of four options:

  • country =: a country name from world_data$name;
  • continent =: a continent name (e.g. "Europe");
  • xlim = / ylim =: a bounding box;
  • shapefile =: a path to a shapefile.

Here we read a bounding box over the British Isles and map a single wet winter day. Because the result is a ggplot, we overlay the coastline with standard ggplot2 syntax.

brit <- nc2xts(f, varname = "rr", xlim = c(-11, 2), ylim = c(49.5, 61))

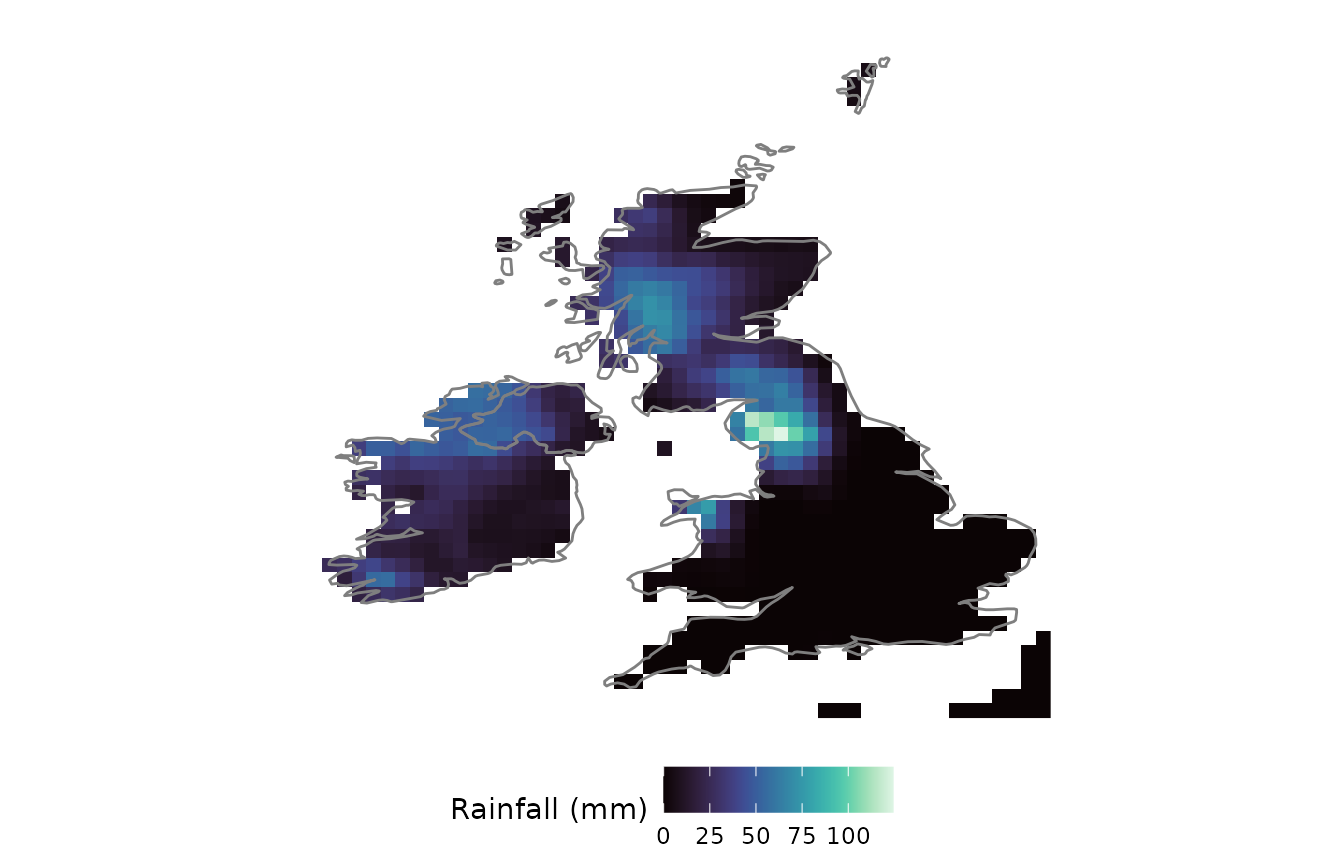

nc_ggplot(brit["2015-12-05"], legend.title = "Rainfall (mm)",
          viridis.option = "mako") &
  borders("world", regions = c("UK", "Ireland"))

For the analysis that follows we clip to the UK by name.

rain_uk <- nc2xts(f, varname = "rr", country = uk_name)

3. Process: temporal aggregation

period_apply_nc() aggregates a gridded sxts over a chosen temporal scale while preserving the spatial metadata. The aggregation function is user-specified: "sum" for rainfall totals, "mean" for a variable such as temperature, or "max" to extract block extremes. Here we form annual totals.

annual_uk <- period_apply_nc(rain_uk, period = "years", FUN = "sum")
c(years = nrow(annual_uk), cells = elements(annual_uk))
#> years cells
#>    12   544

4. Process: gridded statistics

basic_stats_nc() computes a panel of summary statistics at every cell (moments, L-moments, quantiles and intermittency measures) and returns a multi-layer raster. We map mean wet-day rainfall alongside the probability dry.

gstats <- basic_stats_nc(rain_uk, ignore_zeros = TRUE)

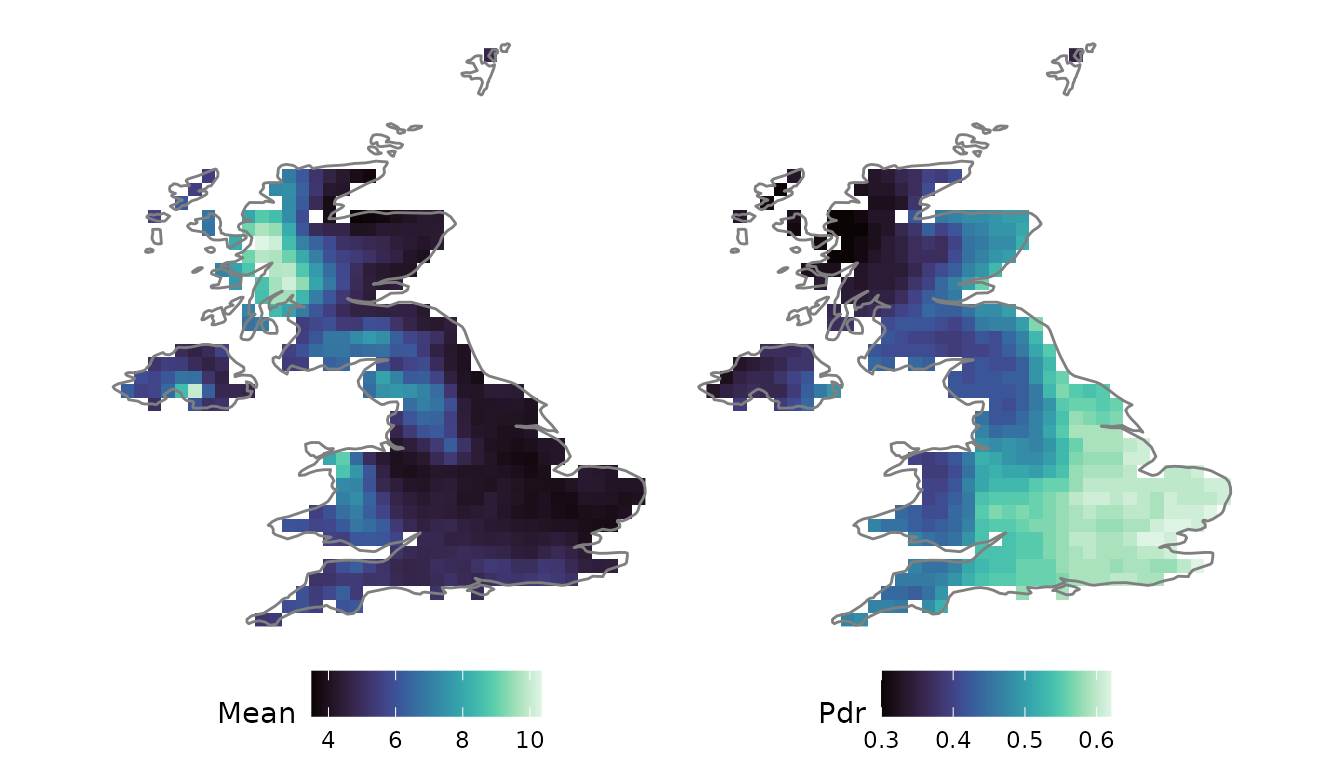

nc_ggplot(gstats[[c("Mean", "Pdr")]], viridis.option = "mako") &
  borders("world", regions = "UK")

For seasonal structure, monthly_stats_nc() computes the same statistics separately for each calendar month. Contrasting January with July shows the seasonal variation in mean wet-day rainfall.

mstats <- monthly_stats_nc(rain_uk, ignore_zeros = TRUE)

p_jan <- nc_ggplot(mstats$January[["Mean"]], legend.title = "January",
                   viridis.option = "mako")
p_jul <- nc_ggplot(mstats$July[["Mean"]], legend.title = "July",
                   viridis.option = "mako")

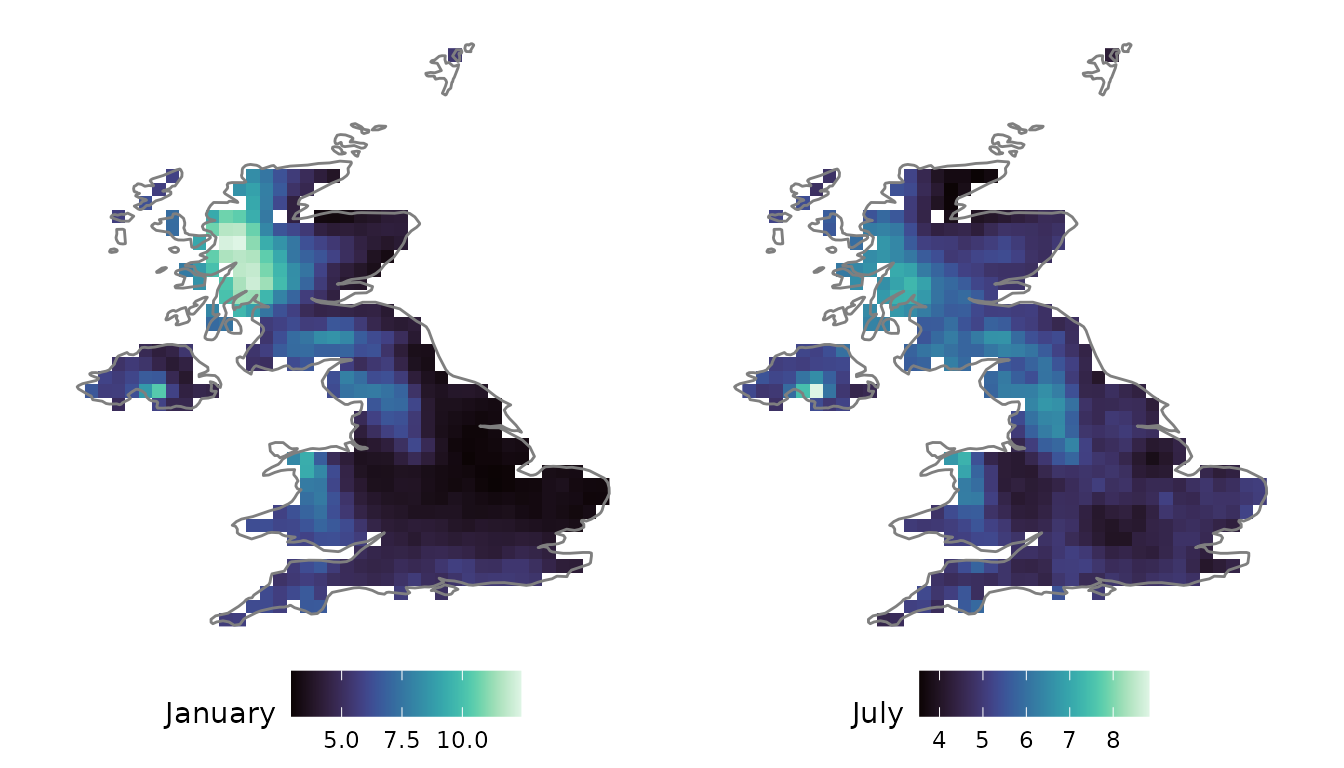

(p_jan | p_jul) & borders("world", regions = "UK")

5. Visualize: customising nc_ggplot()

Every map is a native ggplot object, so it can be customised with the full ggplot2 and patchwork vocabulary. nc_ggplot() itself provides several conveniences: a viridis.option for the colour palette, a legend.title, per-panel titles via title = TRUE, and common_legend = TRUE to share one colour scale across a multi-layer raster. Below we map the L-scale, L-skewness and probability dry with one shared legend.

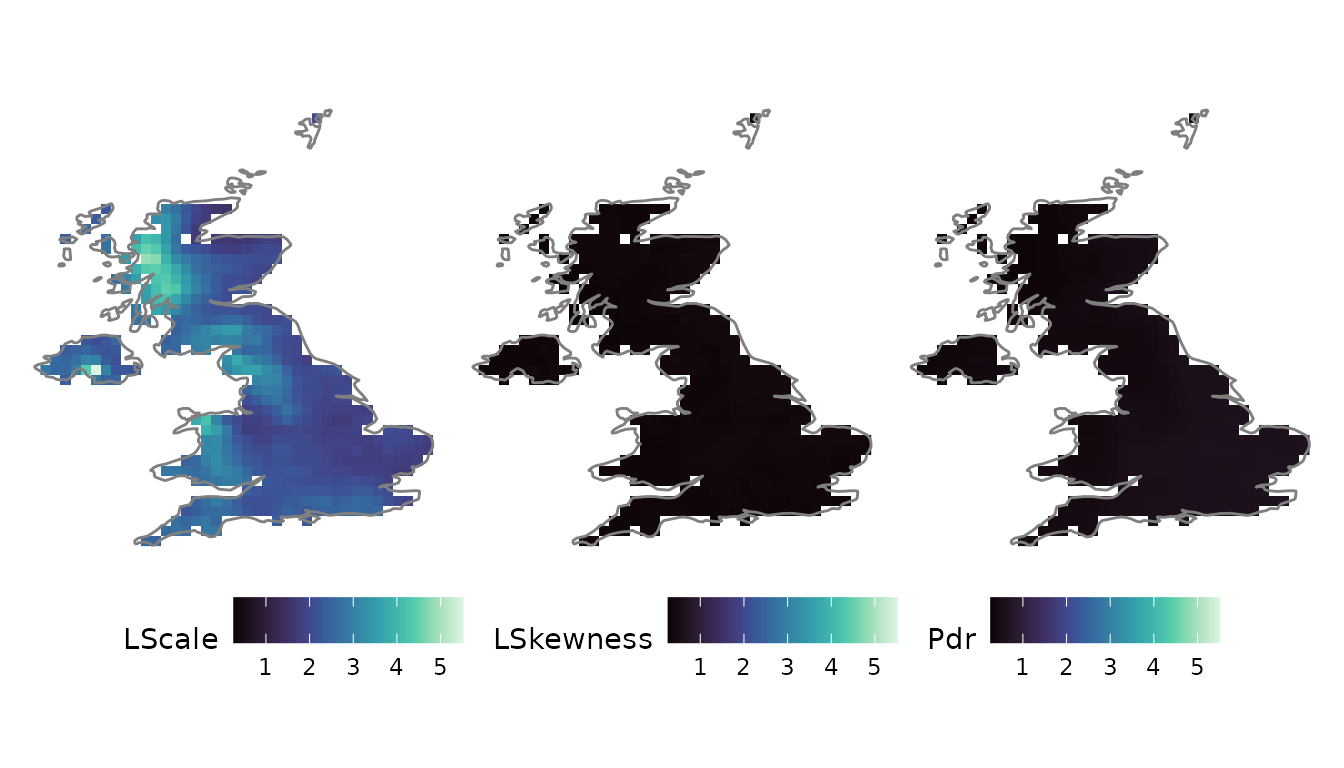

nc_ggplot(gstats[[c("LScale", "LSkewness", "Pdr")]],
          viridis.option = "mako", common_legend = TRUE) &
  borders("world", regions = "UK")

6. Extreme value analysis

Extreme value analysis underpins infrastructure design and flood risk assessment. The procedure is concise: reduce the daily series to annual maxima with period_apply_nc(FUN = "max"), then fit the Generalised Extreme Value (GEV) distribution at every cell with fitlm_nc().

amax <- period_apply_nc(rain_uk, period = "years", FUN = "max")
gev  <- fitlm_nc(amax, candidates = "gev", ignore_zeros = TRUE)

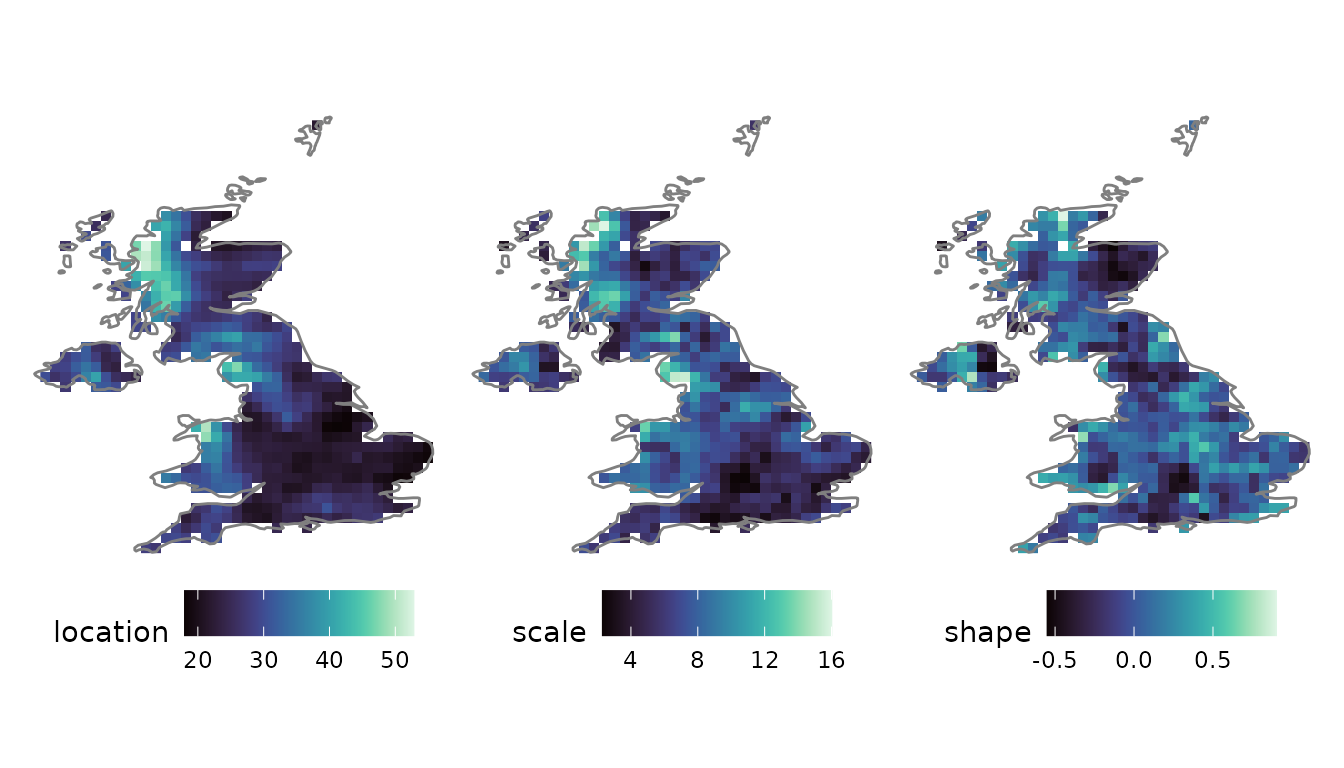

nc_ggplot(gev$fit_results$gev$raster_params, viridis.option = "mako") &
  borders("world", regions = "UK")

The three panels are the GEV location, scale and shape parameters. The location and scale describe the magnitude of extreme daily rainfall, while the shape parameter governs the heaviness of the upper tail, the key control on how quickly design levels grow with return period.

7. See also

  • vignette("distribution-fitting"): the L-moment fitting engine, goodness of fit and L-ratio diagnostics behind fitlm_nc().
  • vignette("sxts-class"): the spatial-xts object that carries every grid through this pipeline.
